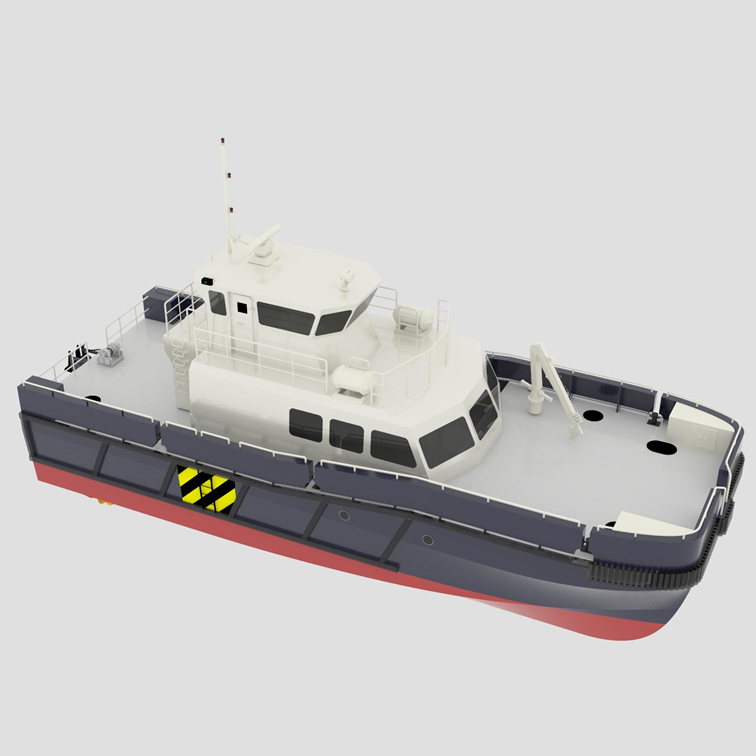

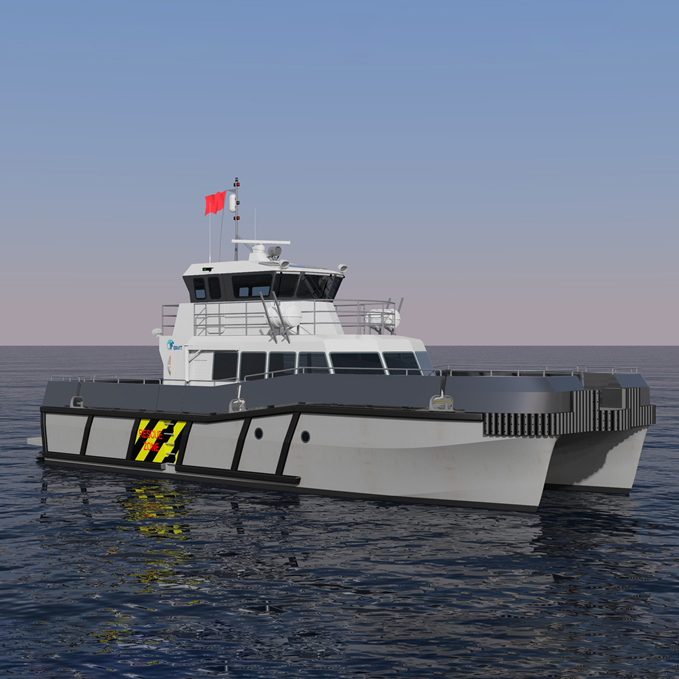

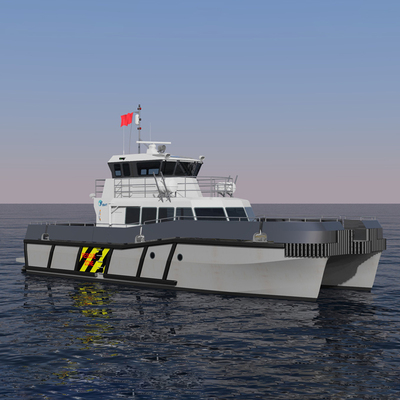

This ship is a 19m offshore wind farm maintenance ship, which can transport 12 wind farm technicians. Its main working conditions are as follows:
▶ Personnel transportation only
▶ As well as personnel, small equipment and cargo transportation.
The ship is made of aluminum alloy, catamaran-type, and its power unit is propeller driven by diesel engine.
The ship design is carried out in accordance with DNV HSLC2011, and the classification symbol is DNV Windfarm Service 1.
0.1 principal dimension
cabinet minister | :19.4 | m |
waterline length | :17.8 | m |
total width | :7 | m |
waterline breadth | :6.7 | m |
Draft (full load, about) | :1 | m |
mariner | :3 |
|
Wind farm technicians (passengers) | :12 |
|
Maximum load | :11.5 | t |
Short-distance maximum speed | 25kn @100%MCR |
Maximum service speed | 22kn @85%MCR |
